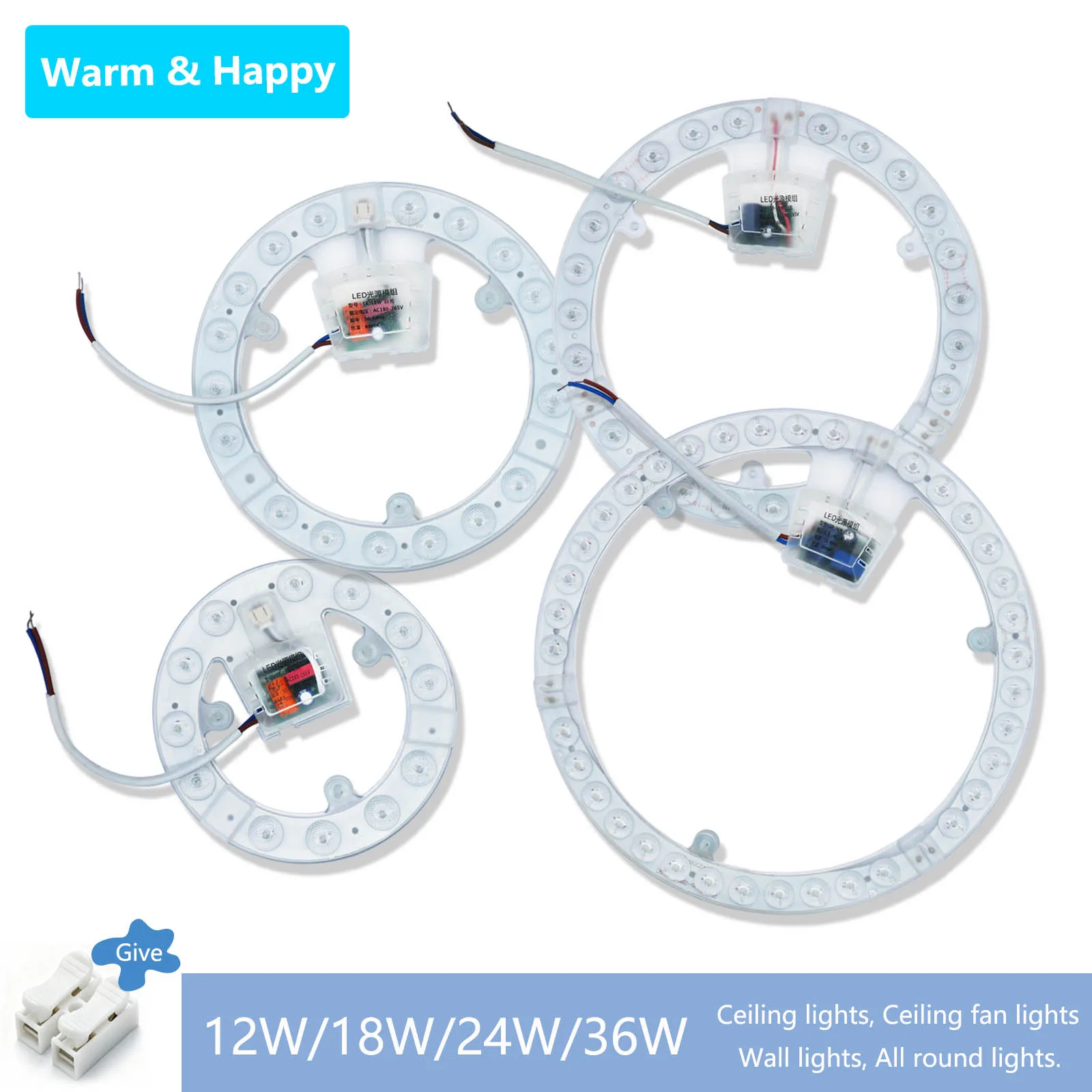

LED Panel Light 220V Replacement Module 12W 18W 24W 36W Circular Light Board 6500K Suitable for Ceiling Lights and Ceiling Fans

Description

Brand Name: warm and happy
High-concerned chemical: none
Origin: Mainland China
Certification: CCC
Item Type: Ball
Power: 12W/18W/24W/36W
Input voltage: AC180-265V
Frequency: 50-60Hz
12W LED bead quantity: 12pcs SMD2835 1W
18W LED bead quantity: 18pcs SMD2835 1W
24W LED bead quantity: 24pcs SMD2835 1W
36W LED bead quantity: 36pcs SMD2835 1W
12W Lumen: 1200LM
18W Lumen: 1800LM
24W Lumen: 2400LM
36W Lumen: 3600LM
LED light color temperature: 6500k
Light guide plate diameter: 118mm/156mm/194mm/230mm
Feature 1: Equipped with an eye-protecting lens, with a 120° light emission angle
Feature 2: There are three small magnets at the bottom, allowing it to adhere to metal plates for easy installation.
Feature 3: The light source board comes with an integrated smart driver, eliminating the need for additional LED power supplies.
Usage: Turn on the power by turning on or off the switch

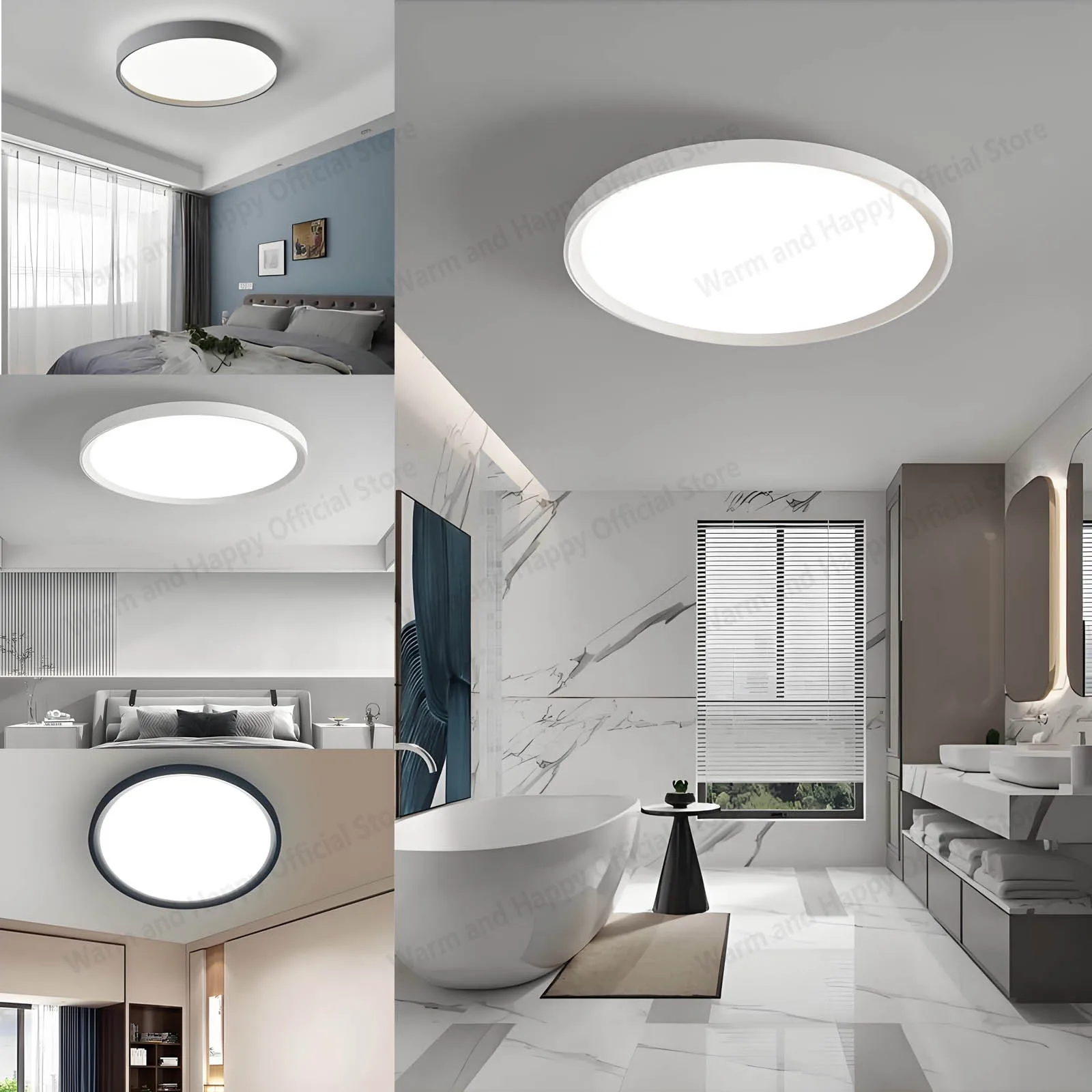

Application: Ceiling lights/Wall lights/Ceiling fan lights/Panel light

Product Details

Power:12W/18W/24W/36W

Input voltage: AC180-265V

Frequency: 50-60Hz

Lumen: 100LM/W, 12W=1200LM

Lumen: 100LM/W, 18W=1800LM

Lumen: 100LM/W, 24W=2400LM

Lumen: 100LM/W, 36W=3600LM

12W Number of LED beads: 12pcs SMD2835 1W

18W Number of LED beads: 18pcs SMD2835 1W
24W Number of LED beads: 24pcs SMD2835 1W
36W Number of LED beads: 36pcs SMD2835 1W

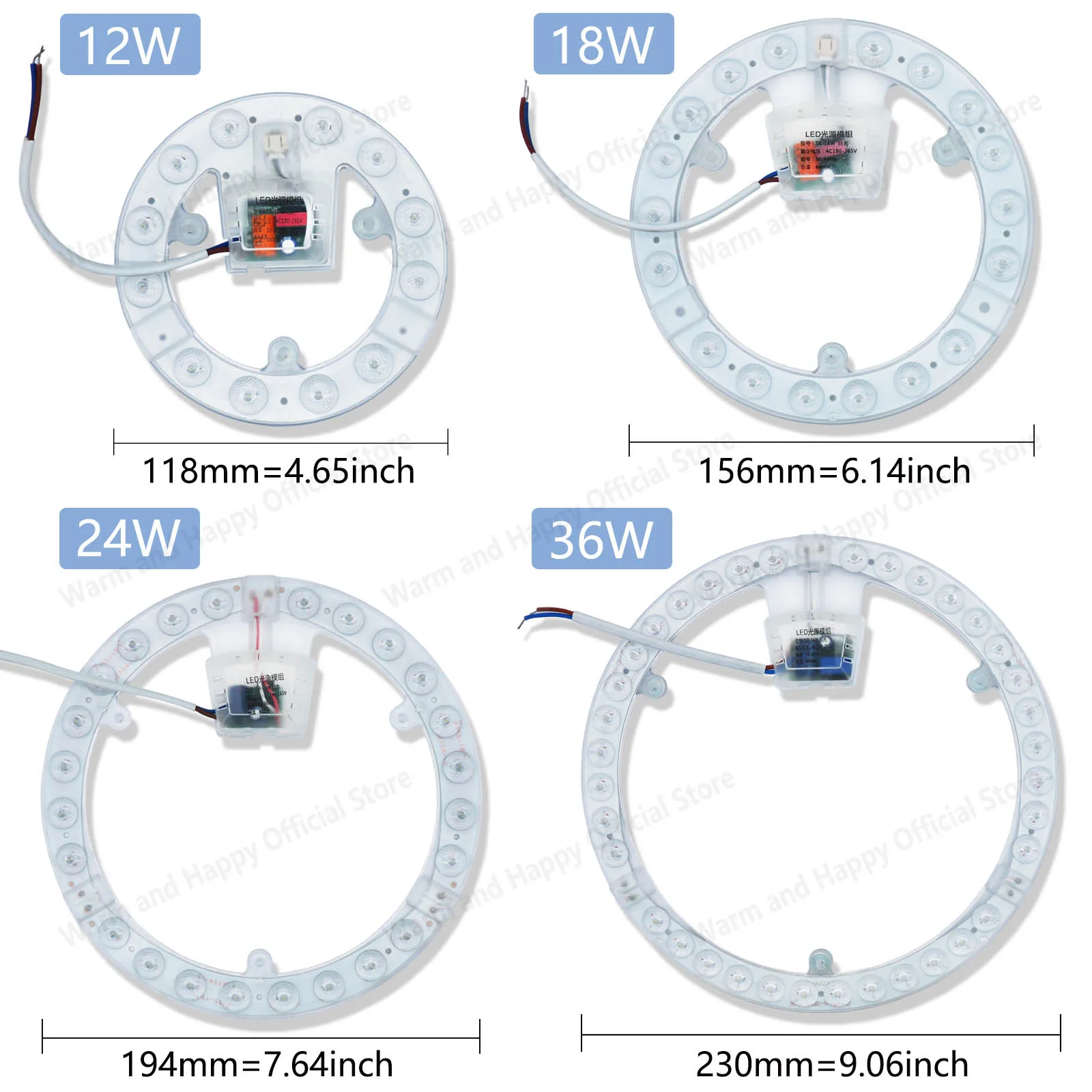

Light source board diameter: 118m=4.65inch

Light source board diameter: 156m=6.14inch
Light source board diameter: 194m=7.64inch
Light source board diameter: 234m=9.06inch

LED light color temperature:White light 6500k

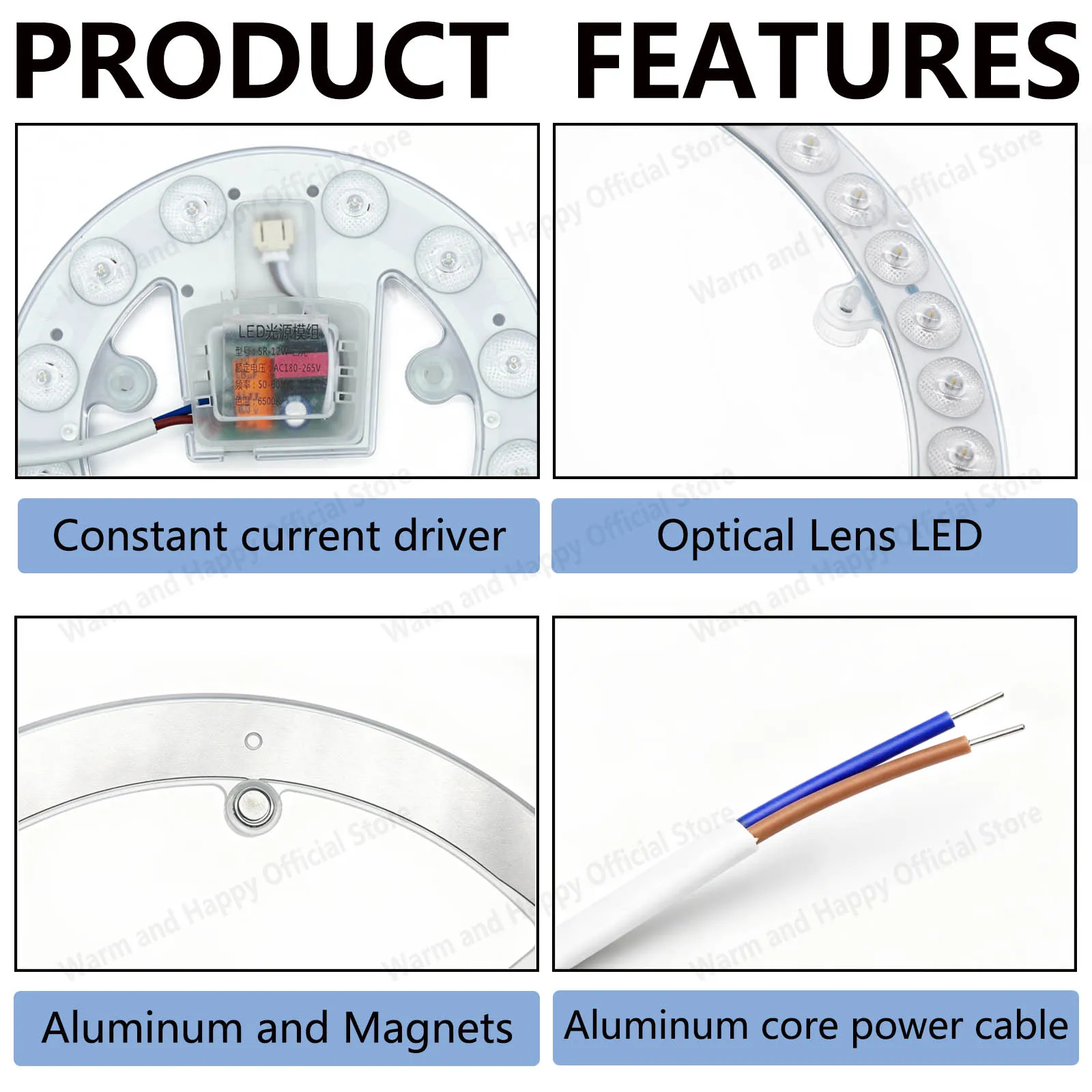

Feature

Feature 1: Equipped with an eye protection lens, emitting light at an angle of 120 °

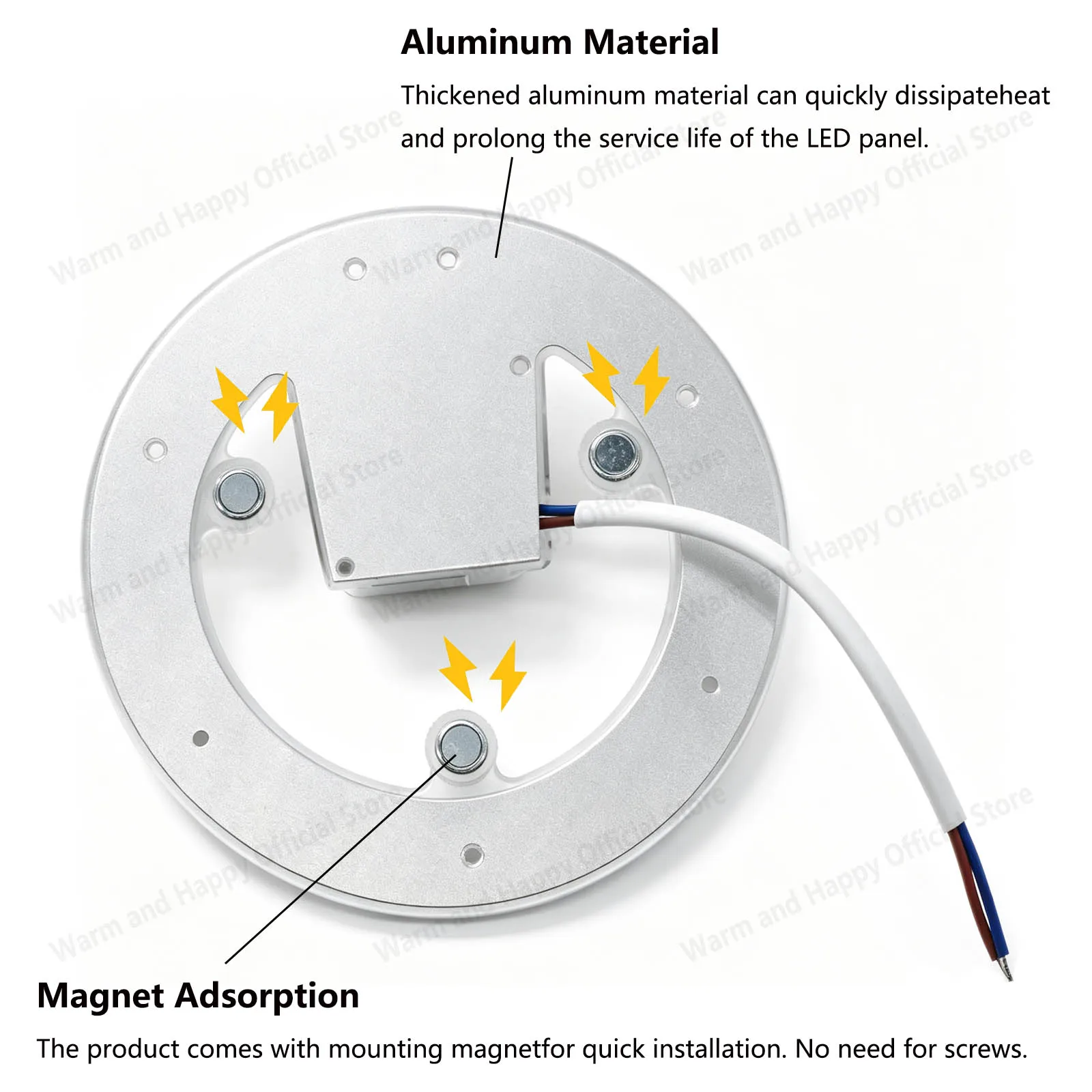

Feature 2: There are 3 small magnets at the bottom that can be attached to the metal plate for easy installation.

Feature 3: The light source board comes with an intelligent driver program, so there is no need to purchase an additional LED driver power supply.

Usage: Usage: Turn on the power by turning on or off the switch

(Purchase the product and receive a 2-pin connection terminal as a gift)
